SOTION FW23 72V 8KW Motor for Tuttio Soleil 01 | Soleil Supplies (Collective)

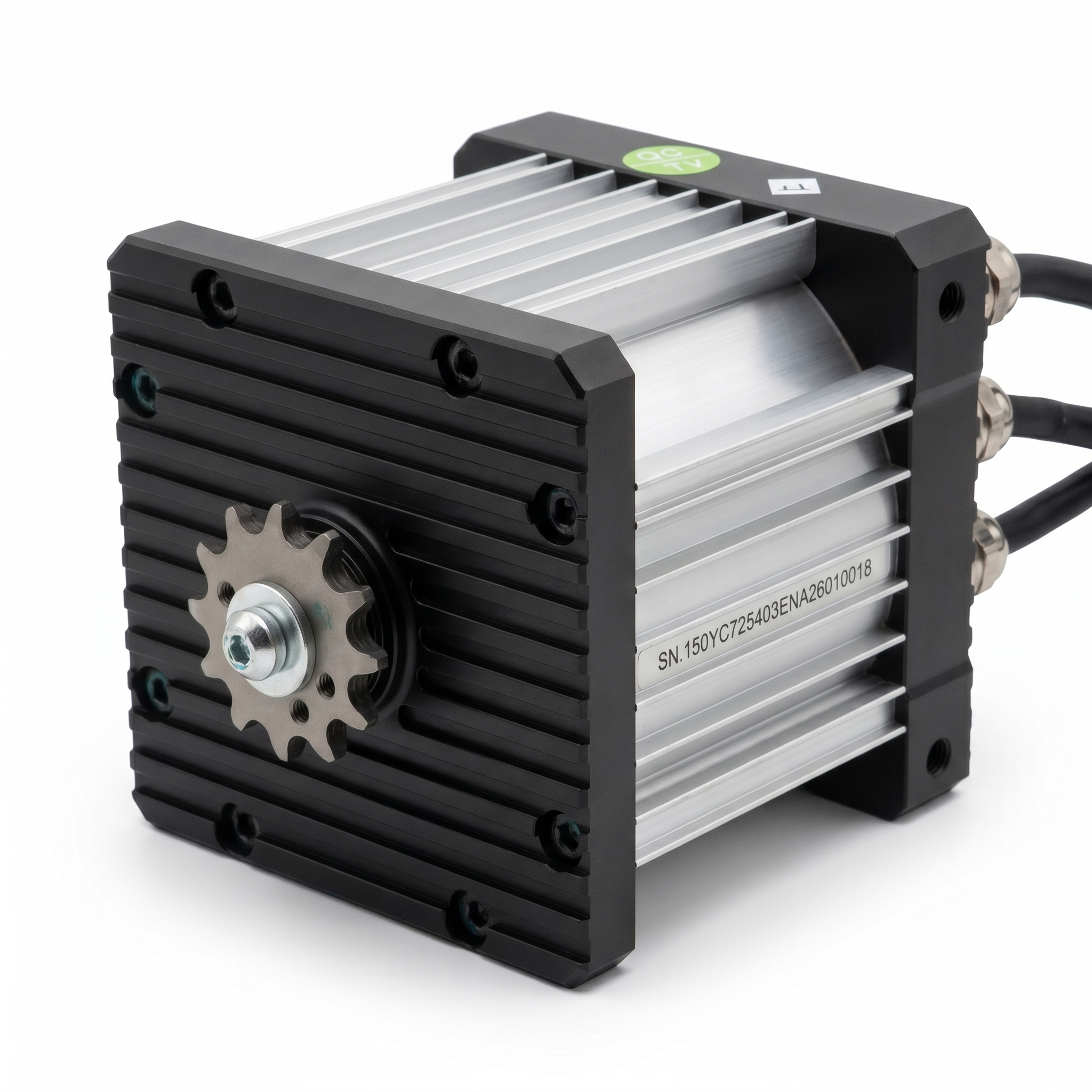

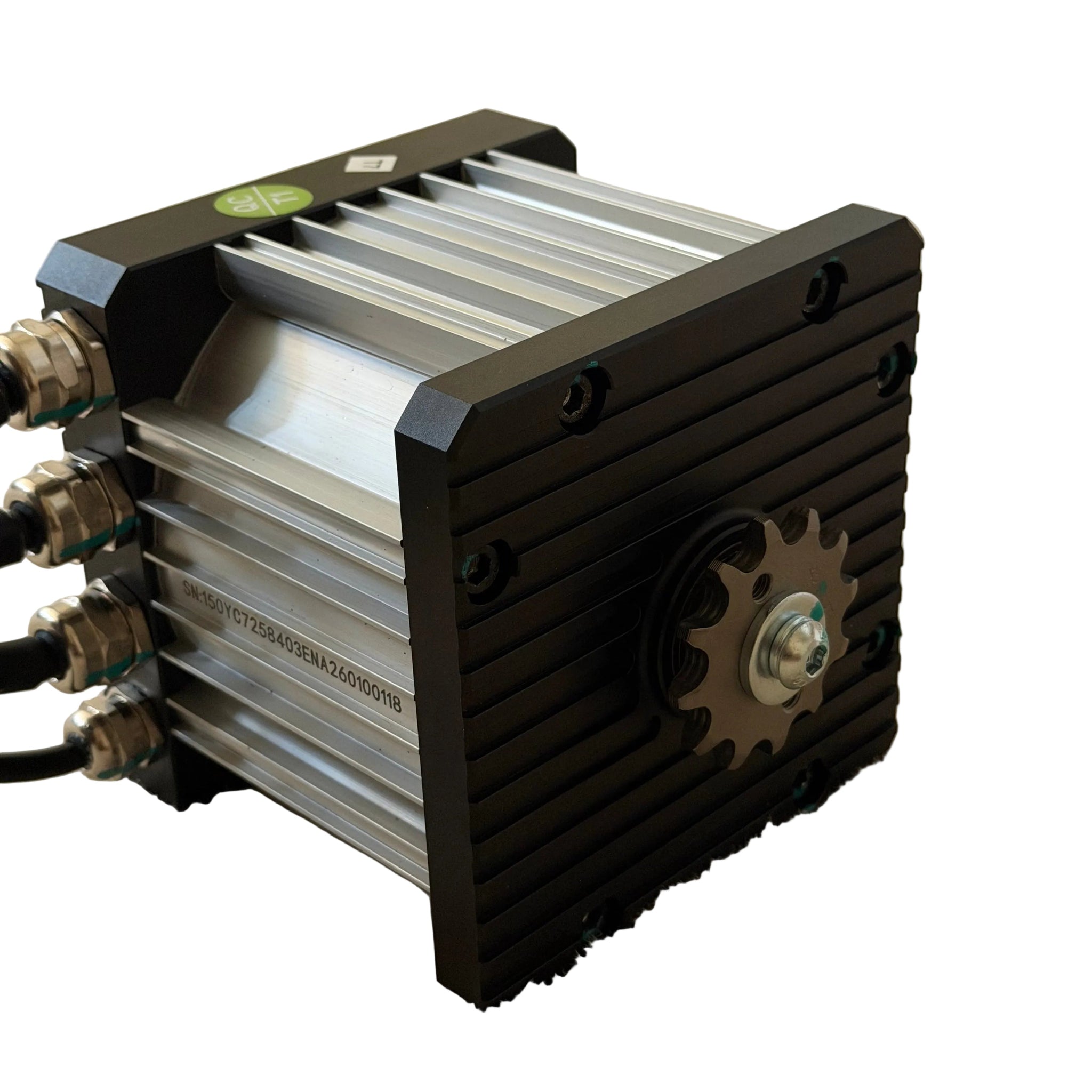

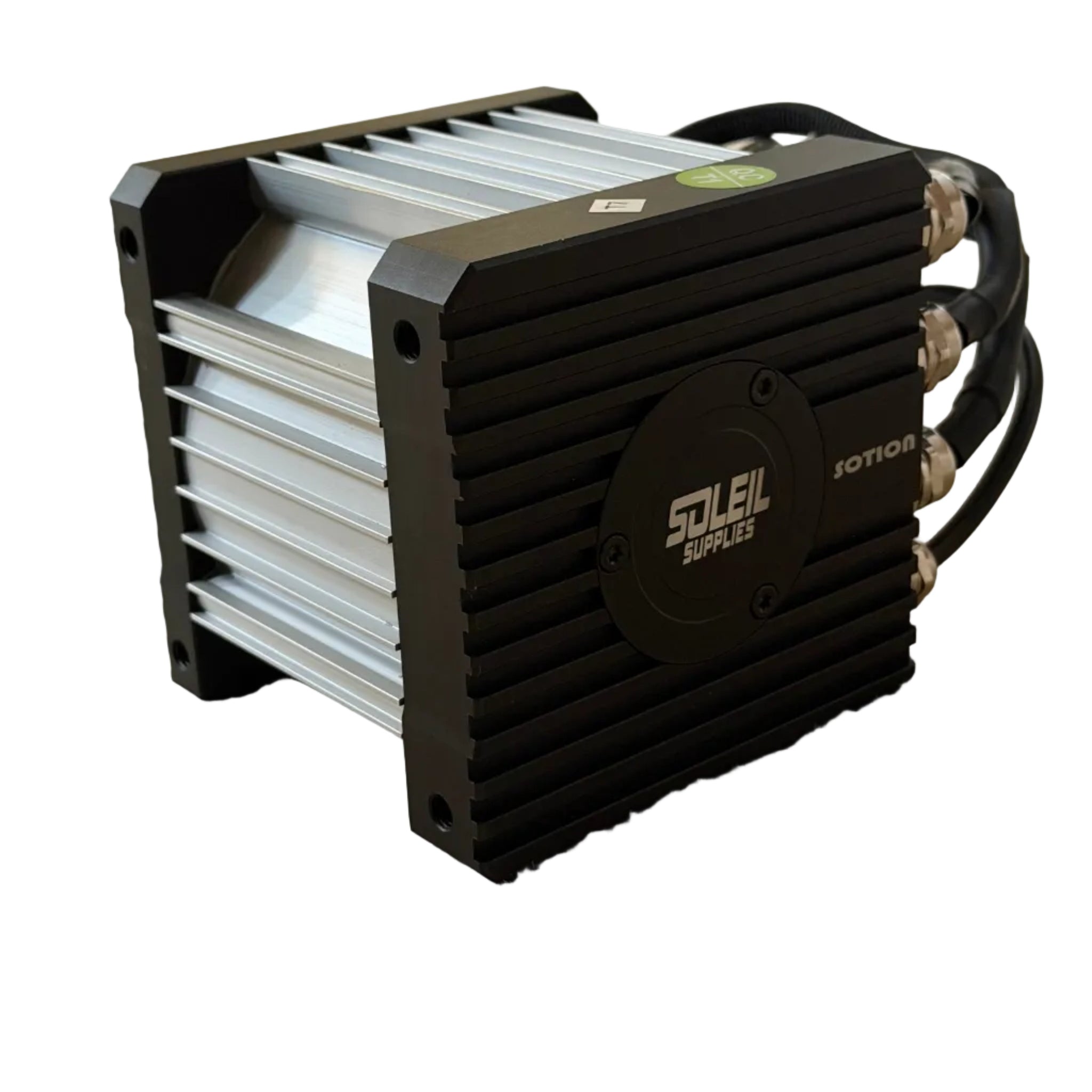

Unlock substantially more performance potential from your Tuttio with the SOTION FW23 Motor Upgrade for the Tuttio Soleil 01.

Rated at 72V and 8KW continuous with up to 16KW peak output, the FW23 is a compact high-performance mid-drive motor designed as a direct-fit upgrade for the Soleil 01. With motor speeds up to 10,000 RPM, it gives performance builds considerably more headroom than the factory powertrain.

The FW23 uses an encoder-based position sensor, so pairing it with the correct controller is critical. For compatible builds, the FarDriver ND72450B or ND72680B are recommended depending on your battery, controller settings, and overall power goals.

A splined output shaft and included 420 12T sprocket simplify installation, while the finned aluminum housing provides passive heat dissipation without pumps or fans.

With an IP67 rating, the motor is also designed to withstand the dirt, dust, splashes, and demanding conditions that come with an e-moto build that’s actually ridden.

⚠️ Controller Compatibility

This is an ENCODER motor.

It requires an encoder-compatible controller and proper configuration. Do not purchase this motor expecting compatibility with a Hall-sensor-only controller.

Recommended controller options:

• FarDriver ND72450B
• FarDriver ND72680B

Controller selection and tuning should be matched to your battery’s voltage, BMS/current capabilities, gearing, and desired power level.

Specifications

Fitment

Tuttio Soleil 01

Direct-fit application according to the vendor. No fabrication or adapter is specified as required.

What’s Included

• SOTION FW23 motor
• 420 12T sprocket
• Splined output shaft

Vendor: Soleil Supplies
Sold by K. Mods through Shopify Collective
